  • 030-011 } Gas Flanged Pump / General Pump TX1508G8UI

030-011 } Gas Flanged Pump / General Pump TX1508G8UI

Product Description

030-011 } Gas Flanged Pump / General Pump TX1508G8UI

  • Product Description:

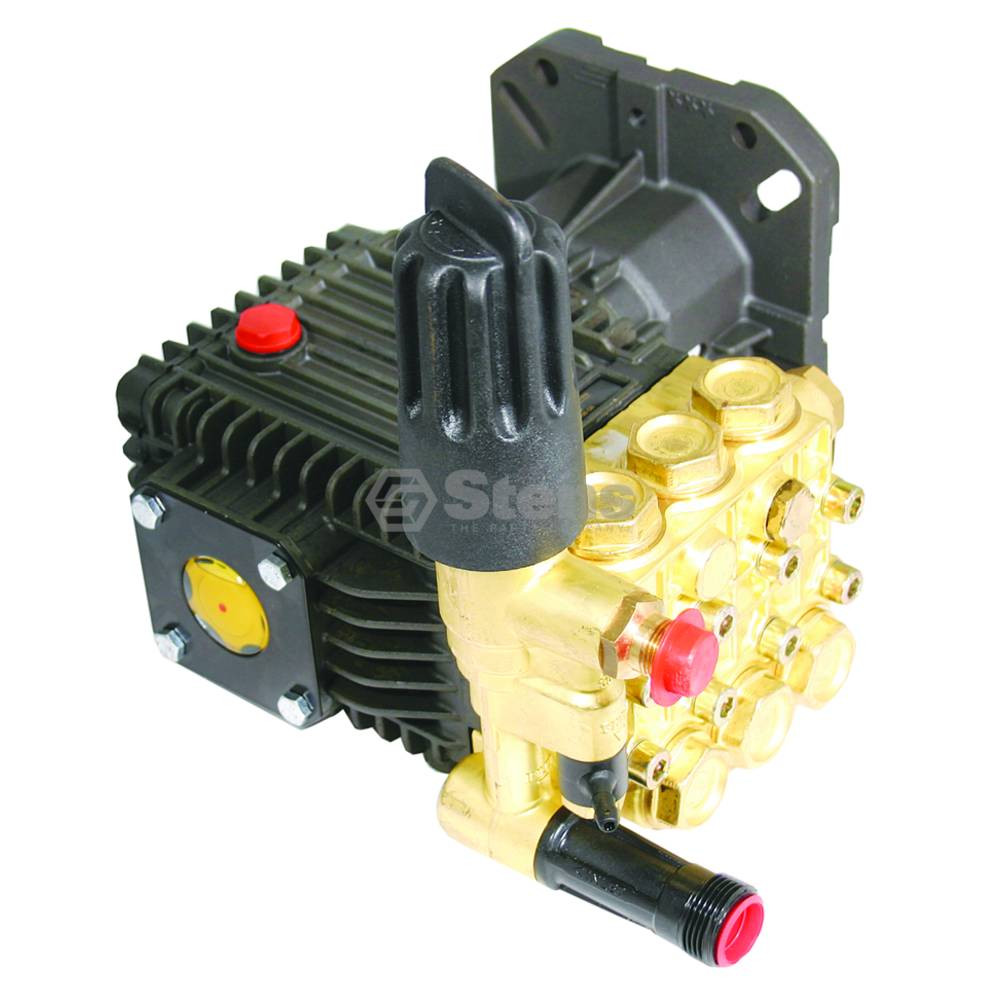

    • Gas Flanged Pump
    • General Pump TX1508G8UI
  • OEM Cross Reference:
    • General Pump TX1508G8UI
  • Fits Model:
  • Aftermarket Cross Reference:
    • NHC 285-0011
  • Package Quantity:  1
  • Specifications:
    • Pounds Per Square Inch: 3,000, Maximum inlet required, flooded, Inlet port thread 1/2"-14 BSP-F, Crankcase oil capacity 14 oz., Built-in unloader and downstream injector on left side of manifold, Maximum fluid temperature 165??? F., Made By: An OEM supplier, Pump dimensions 8.4" x 8.3" x 4.8", Maximum inlet pressure 125 PSI, SAE J609B, 1" hollow shaft, Type: Horizontal Gas Flanged, Stroke: .315", TX Series 63, GHP: 9.2, Triplex plunger pump, RPM: 3,400, Flanged for direct couple to gasoline engines, Large, lightweight connecting rods, Bore: .591 ", Gallons Per Minute: 3.0, Forged brass manifold with exclusive lifetime warranty, Manufacturer warranty applies, Discharge port thread 3/8"-19 BSP-F, New long life low and high pressure seals
  • Additional Information:
  • Also Consider:
  • Prior Stens Substitutions:
$1,002.58 $925.37
(You save $77.21)
Availability:
Usually ships in 1-3 days
