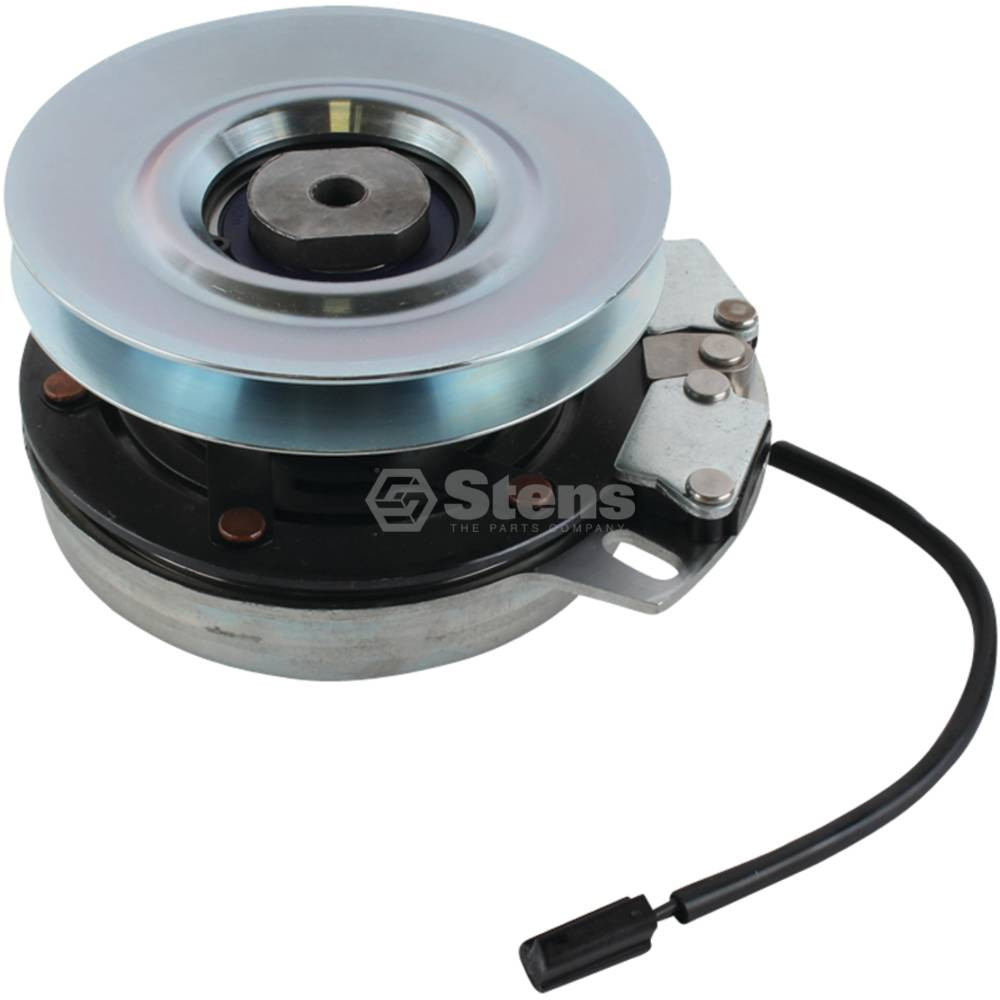

255-289X } Electric PTO Clutch / Xtreme X0008

255-289X } Electric PTO Clutch / Xtreme X0008

• Applications
• Warner 5219-79, Warner 5219-51
• Cub Cadet 917-04174A, Cub Cadet 717-04174A, Cub Cadet 717-04174, Cub Cadet 917-04174
• MTD 917-04174A, MTD 717-04174A, MTD 717-04174, MTD 917-04174,
• Troy-Bilt 717-04174, Troy-Bilt 717-04174A, Troy-Bilt 917-04174, Troy-Bilt 917-04174
• Xtreme X0008

• Specficiations
• Integrated Water Tight Wire Harness
• Diameter Pulley: 6.000 "
• Uses belt width: 1/2 " or 5/8"
• Direction: Counter clockwise
• Installation: To prevent premature clutch failure, follow the instruction sheet included with the clutch
• Super Smooth "Xtreme Precision" Machined Pulley
• Replaceable Pulley Bearing
• Cool Coil Technology
• Crank Diameter: 1.000 "
• High Temperature Bearing Upgrade

• Cross References
• Oregon 33-134, Rotary 12621, NHC 274-2764, Ratio Parts 030-774
