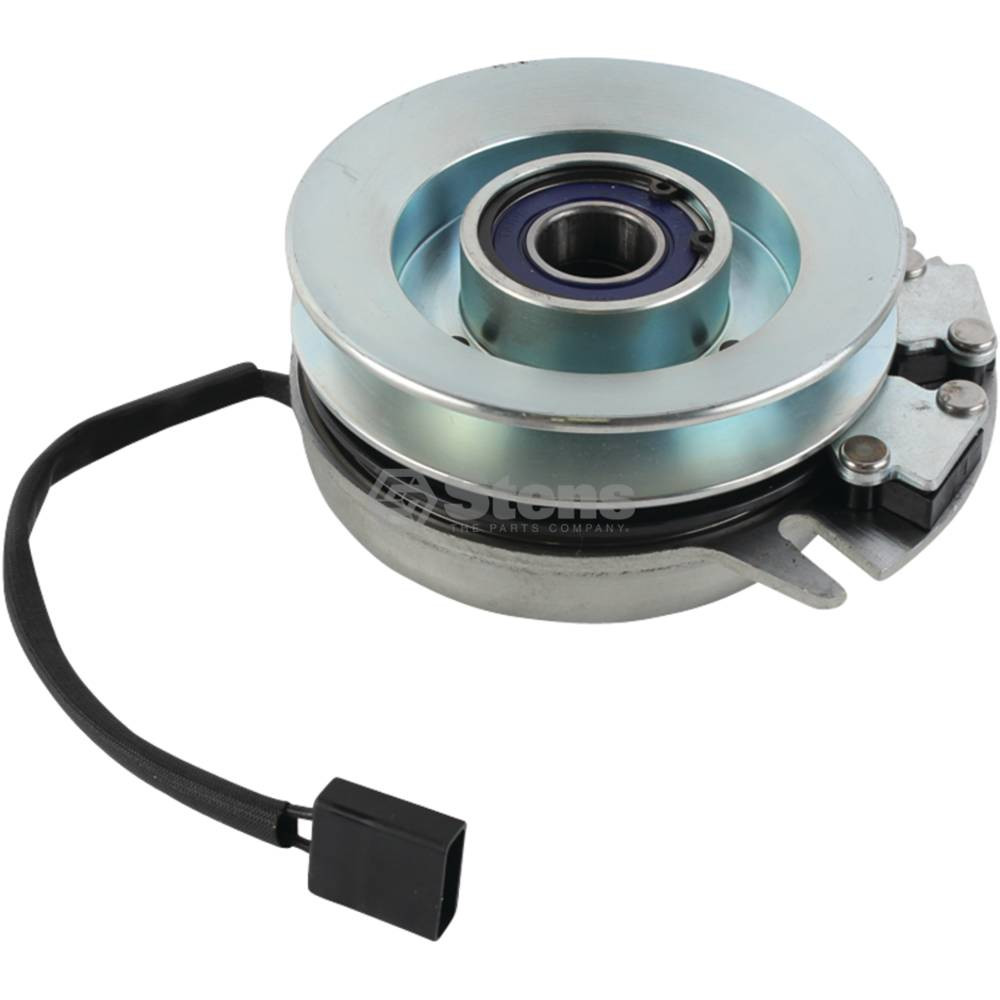

255-293X } Electric PTO Clutch / Xtreme X0014

255-293X } Electric PTO Clutch / Xtreme X0014

• Applications
• Cub Cadet 917-3385A, Cub Cadet 717-3385A, Cub Cadet 917-3385B, Cub Cadet 717-3385, Cub Cadet 717-3385AP, Cub Cadet 717-3385B, Cub Cadet 917-3385,
•  MTD 917-3385A, MTD 717-3385A, MTD 717-3385, MTD 917-3385B,  MTD 717-3385, MTD 717-3385AP, MTD 717-3385B, MTD 917-3385
•  Warner 5217-42, Warner 5217-7, Warner 5217-14
•  Troy-Bilt 717-3385, Troy-Bilt 717-3385AP, Troy-Bilt 717-3385A, Troy-Bilt 717-3385B, Troy-Bilt 917-3385, Troy-Bilt 917-3385A, Troy-Bilt 917-3385B
•  Xtreme X0014

• Specifications
• Installation: To prevent premature clutch failure, follow the instruction sheet included with the clutch
• Cool Coil Technology
• Diameter Pulley: 5.34 "
• Crank Diameter: 1.000 "
• Integrated Water Tight Wire Harness
• Uses belt width: 1/2 " or 5/8"
• Super Smooth "Xtreme Precision" Machined Pulley
• High Temperature Bearing Upgrade
• Direction: Counter clockwise
• Replaceable Pulley Bearing

• Cross References
• Rotary 12231, NHC 274-2712, Ratio Parts 030-772, Sunbelt B1EC107
