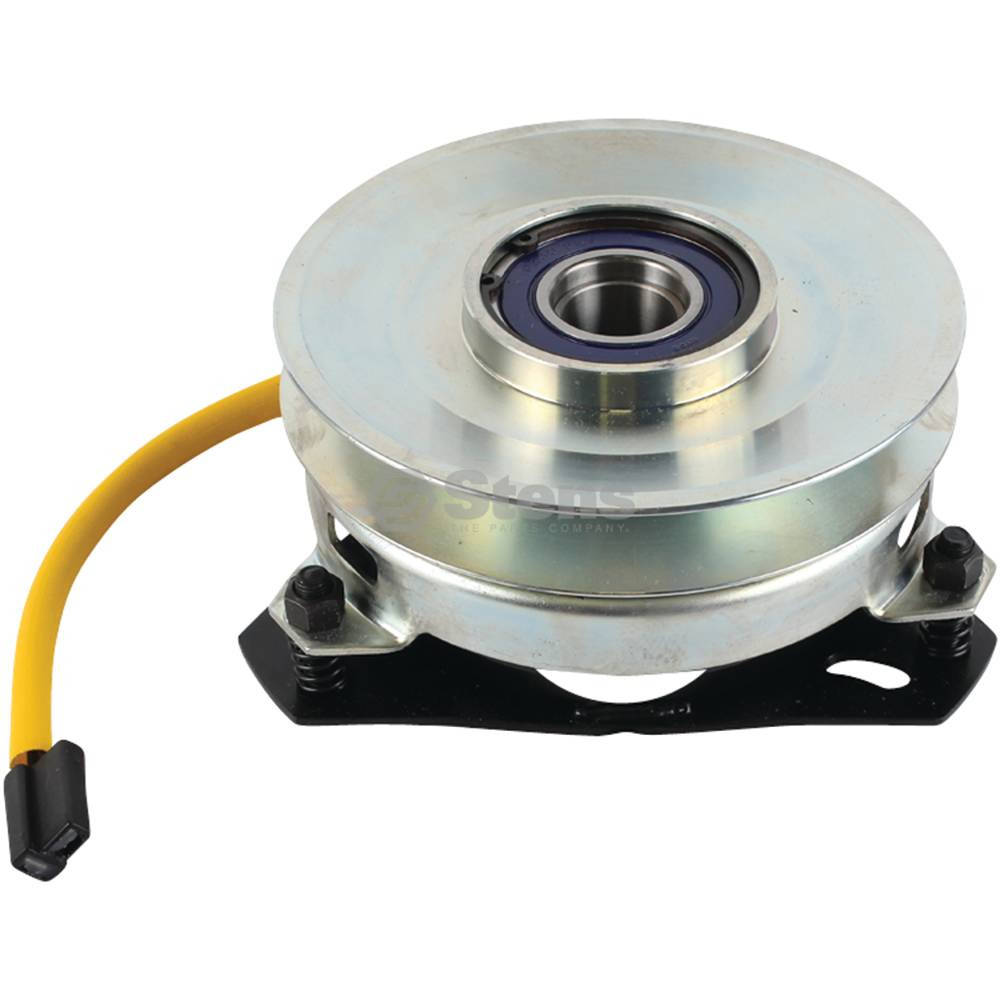

255-347X } Electric PTO Clutch / Xtreme X0188

255-347X } Electric PTO Clutch / Xtreme X0188

• Applications
• Cub Cadet 917-3389, Cub Cadet 717-3389, Cub Cadet 01000725, Cub Cadet 717-3375, Cub Cadet 717-3389P, Cub Cadet 917-3384
• MTD 917-3389, MTD 717-3389, MTD 01000725, MTD 717-3389P, MTD 717-3375
• Troy-Bilt 01000725, Troy-Bilt 717-3375, Troy-Bilt 717-3389, Troy-Bilt 717-3389P, Troy-Bilt 717-3389
• Warner 5215-68, Warner 5210-30
• Xtreme X0188

• Specifications
• Cool Coil Technology, Direction: Counter clockwise, Replaceable Pulley Bearing, Installation: To prevent premature clutch failure, follow the instruction sheet included with the clutch, Super Smooth "Xtreme Precision" Machined Pulley, Diameter Pulley: 6.050 ", Crank Diameter: 1.000 ", Integrated Water Tight Wire Harness, High Temperature Bearing Upgrade, Uses belt width: 1/2 " or 5/8"

• Cross References
• Rotary 12230, Landscaper Express 255347, Ratio Parts 030-770, NHC 274-2751, Sunbelt B1EC106 W2828
