285-597 } Spindle Assembly / Scag 461663

285-597 } Spindle Assembly / Scag 461663

• Product Description:

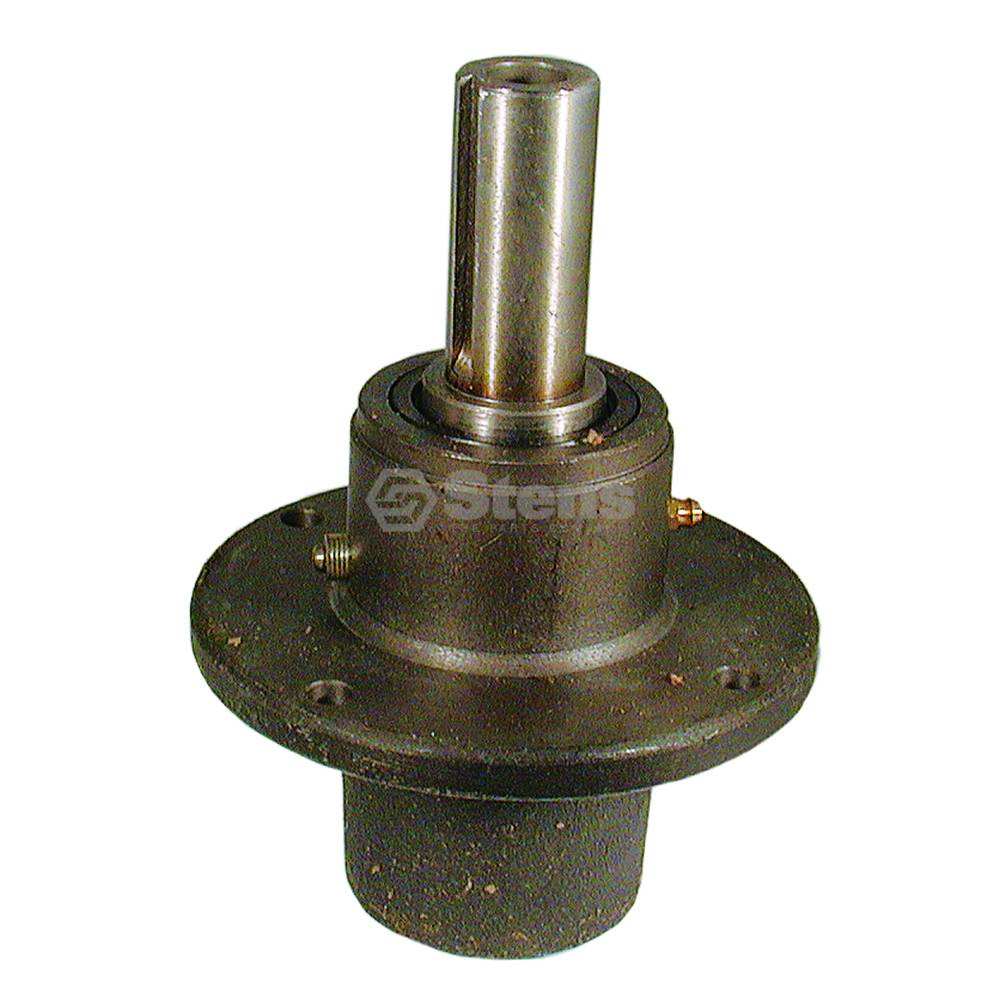

• Spindle Assembly
• Scag 461663
• OEM Cross Reference:
• Scag 46631, Scag 461663
• Fits Model:
• Scag Cheetah, Sabre Tooth Tiger, Tiger Cub, Tiger Cat, Turf Tiger and Wildcat with 52" Advantage decks
• Aftermarket Cross Reference:
• Rotary 9153, Prime Line 7-03135, Green Line 24121, Mow More SH9153, Oregon 82-325, J. Thomas JT99798, Laser 97727, Landscaper Pro 292907, J. Thomas 285597, NHC 251-7397

• Package Quantity:  1

• Specifications:
• Cast iron assembly, Height: 7 " OVERALL, With grease fitting, New style with taper roller bearings, OD: 1 1/8 "

• Additional Information:
• Use with 215-103 Tapered Roller Bearing 215-103 Tapered Roller Bearing, Fits 215-111 Bearing Race 215-111 Bearing Race, Uses 230-023 Tapered Bearing Set 230-023 Tapered Bearing Set, Uses 410-066 Blade Bolt 410-066 Blade Bolt

• Also Consider: 215-103, 215-111, 230-023, 410-066
• Prior Stens Substitutions:
