3700P009 } NORAM Tri-Lobe Clutch

NORAM Tri-Lobe Clutch (3700 series)

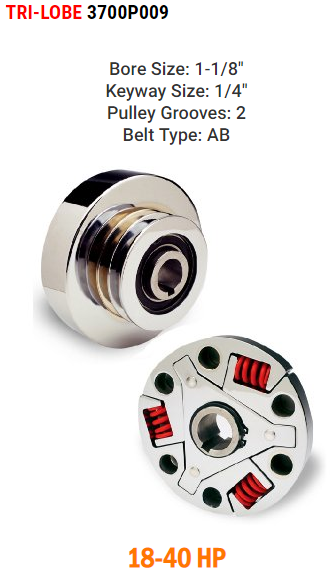

• 3700P009 Tri Lobe Centrifugal Clutch:

• BORE - 1-1/8

• KEY - 1/4
• GROOVE - 2
• Replaces 600021

NORAM’s Tri-Lobe 3700 Series centrifugal clutch is a narrow profile, three-shoe clutch ideal for chippers, compressors, concrete pumps, riding trowels, transport refrigeration, blowers, and other large (up to 50 hp) industrial clutch applications

FEATURES AND BENEFITS:

• Greater operating range. •
• Slender 7″ diameter design evenly distributes the weight on the crankshaft, enhancing balance while noticeably decreasing the amount of overhang for a more streamlined appearance. •
• Quiet operation. •
• Self-energizing design transfers maximum torque. •
• Reduced vibration. •
• Less slippage. •
• Advanced compression spring technology enables the solid fit, perform longer and more consistent performance than those featuring a conventional pull spring arrangement. This reduction in fatigue dramatically extends clutch life cycle and reduces spring failure. •
• A superior bonded, long-life shoe lining provides a better coefficient of friction. •
• Parts are readily available for maximum ease of maintenance. •
• Easy installation. •
