632-464 } Cylinder Assembly / Dolmar 394 130 140

632-464 } Cylinder Assembly / Dolmar 394 130 140

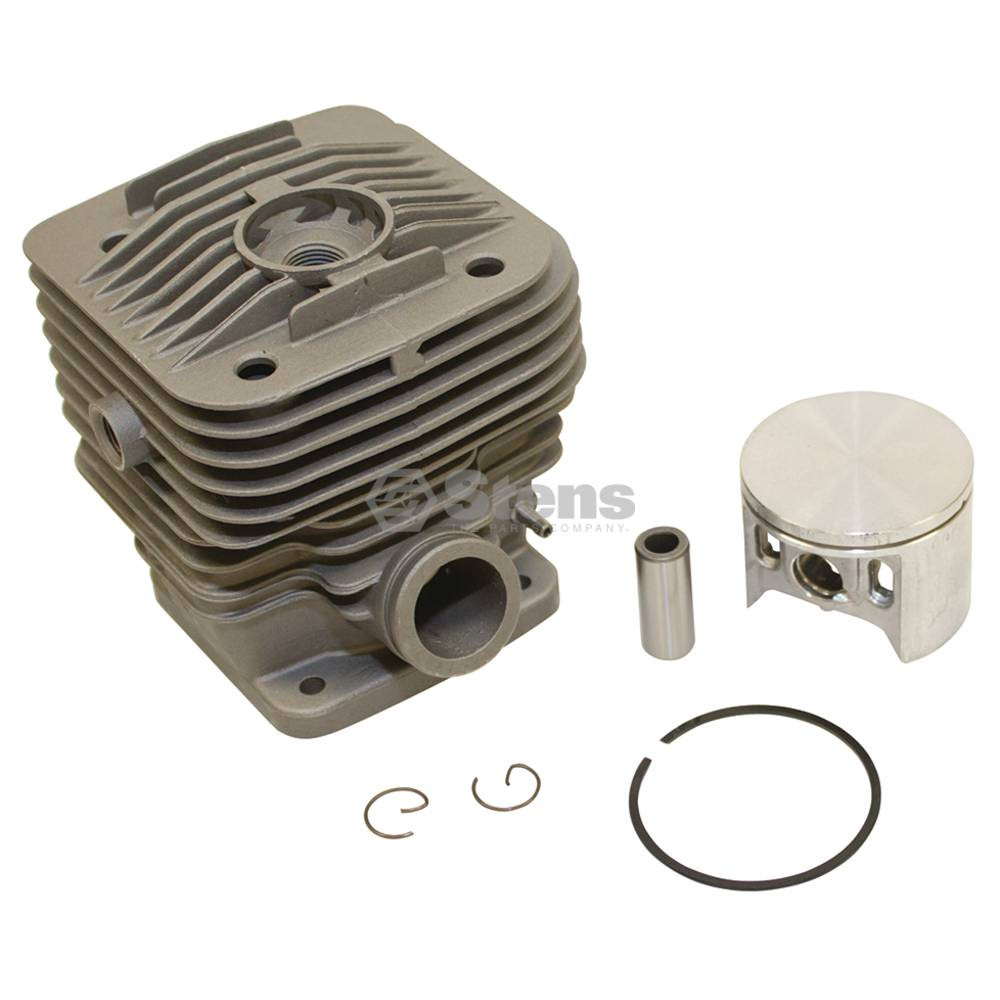

• Product Description:
• Cylinder Assembly
• Dolmar 394 130 140
• OEM Cross Reference:
• Makita 394 130 015, Dolmar 394 130 013, Dolmar 394 130 014, Makita 394 130 014, Wacker 0202781, Wacker 0108119, Wacker 0213561, Wacker 0202780, Wacker 0206855, Dolmar 394 130 015, Dolmar 394 130 140, Makita 394 130 140, Dolmar 394 130 053, Diamond Products - Industrial 6060473
• Fits Model:
• Diamond SC-7312XL and SC-7314XL (compression release on side) Speedicut saws; Dolmar PC7312, PC7314, PC7330, PC7330 C, PC7335, PC7335 C, PC7430 and PC7435; Makita DPC7300, DPC7301, DPC7310, DPC7311, DPC7320 and DPC7321 ; Wacker BTS1030, BTS1030 L3, BTS1035 and BTS1035 L3
• Aftermarket Cross Reference:
• Rotary 12815, NHC 203-7546

• Package Quantity:  1

• Specifications:
• Includes: Piston, ring, pin and clips, Ethanol: Not compatible with greater than 10% ethanol fuel, Decompression port on side of cylinder, Bore: 50 mm

• Additional Information:
• Uses 635-701 Cylinder Plug 635-701 Cylinder Plug, Uses 635-360 Decompression Valve 635-360 Decompression Valve, Uses 623-487 Base Gasket 623-487 Base Gasket

• Also Consider: 635-701, 635-360, 623-487
• Prior Stens Substitutions:
