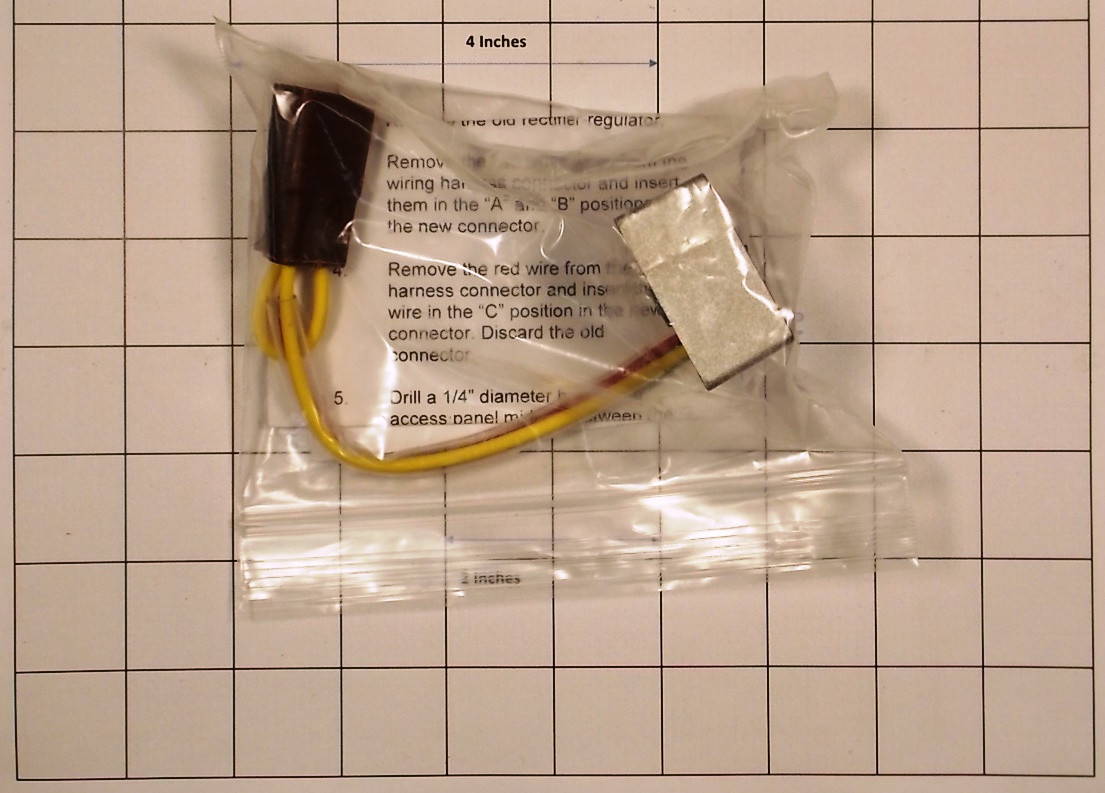

C31249 } RECTIFIER

RECTIFIER

• See instruction sheet illustration
• Case of rectifier must be well grounded
• We recommend a supplemental ground wire from the mounting hole bolt to a good ground on the chassis of your equipment
• On earlier models with different wiring and connector shells, add the following for a neat update to your wiring harness:
• C25486 } CONNECTOR
• A8774 } WIRE TERMINAL, qty 3
• C26670 } GROUND STRAP
• Substitutes:  C25485, C27509
• Consider also:  C43910 } RECTIFIER KIT
• Replaces C14547 - USE C31249 and C25486 connector, rewire and ground the rectifier body
