C43293 } KIT STEERING CABLE

KIT STEERING CABLE

• LIMITED AVAILABILITY

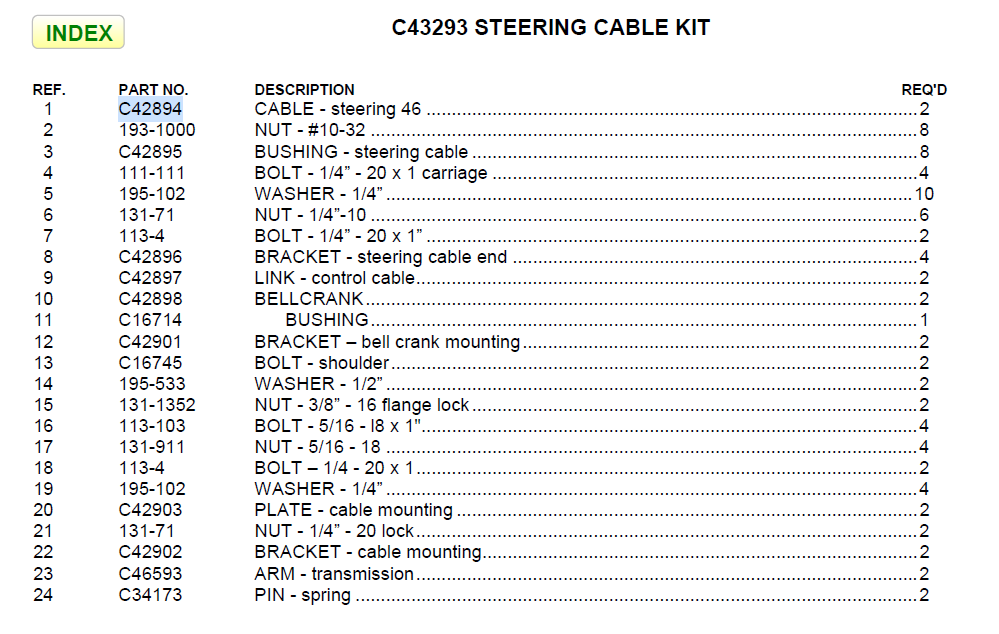

• REF. PART NO. DESCRIPTION                                                                                                       QTY
  1 C42894 CABLE - steering 46 .................................................................................................2
  2 193-1000 NUT - #10-32 ............................................................................................................8
  3 C42895 BUSHING - steering cable ........................................................................................8
  4 111-111 BOLT - 1/4” - 20 x 1 carriage ....................................................................................4
  5 195-102 WASHER - 1/4” ........................................................................................................10
  6 131-71 NUT - 1/4”-10 ............................................................................................................6
  7 113-4 BOLT - 1/4” - 20 x 1” .................................................................................................2
  8 C42896 BRACKET - steering cable end ................................................................................4
  9 C42897 LINK - control cable...................................................................................................2
  10 C42898 BELLCRANK.............................................................................................................2
  11 C16714 BUSHING............................................................................................................1
  12 C42901 BRACKET – bell crank mounting..............................................................................2
  13 C16745 BOLT - shoulder........................................................................................................2
  14 195-533 WASHER - 1/2” .........................................................................................................2
  15 131-1352 NUT - 3/8” - 16 flange lock........................................................................................2
  16 113-103 BOLT - 5/16 - l8 x 1"..................................................................................................4
  17 131-911 NUT - 5/16 - 18 .........................................................................................................4
  18 113-4 BOLT – 1/4 - 20 x 1...................................................................................................2
  19 195-102 WASHER - 1/4” .........................................................................................................4
  20 C42903 PLATE - cable mounting ...........................................................................................2
  21 131-71 NUT - 1/4” - 20 lock...................................................................................................2
  22 C42902 BRACKET - cable mounting......................................................................................2
  23 C46593 ARM - transmission...................................................................................................2
