N46 -200 Mower Rebuild } Major

MOWER REBUILD } MAJOR N46 } 200

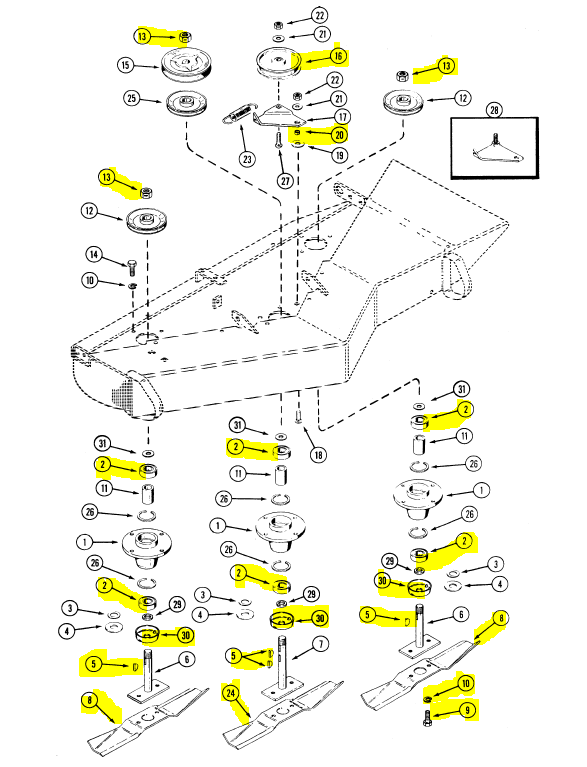

• Kit for major mower deck rebuild
• Pre-selected for your mower deck model, may contain extra minor parts
• Use with 200 series tractors only

• Includes typical wear components

• Blades, bearing guards (C14886 (2), C244443 (1), C25543 (3)
• Spindle bearings (6 } C28971)
• Idler Pulleys (2 } C25370 (280-287), 1 } C12251 (280-719)
• Framework bushings (2 } C16573, 2- C17597, 1- C14768)
• Internal deck belt (1 } C22708)
• Mower drive belt (1 } C23358)
• Engine to deck idler spring (1 } C21942)
• Rear guide wheels and bolts (5" 2 } C26736, 2 } C16745)

• Hardware
• Support pins and safety clips (4 } C10821, 6 – C10898)
• Spindle nuts and keys (3 } 131-1331, 4 } 126-19)
• Blade bolts  (6 } 192-21, 6 } 113-206)

• All parts available outside kits
• Part Manuals
